Toro 24.5 HP Engine Oil Filter Cross Reference(For All Brands)

One critical component of routine maintenance is choosing the right oil filter. In this post, we’ll look into the Toro 24.5 HP engine oil filter cross reference, helping you find compatible alternatives, understand what to look for, and make informed buying decisions. Let’s jump in.

Toro 24.5 HP Engine Oil Filter Cross Reference

OEM / Brand	Part Number	Notes
Kawasaki (OEM)	49065-7007, 49065-0724	Original filters
Fram	PH4967	Widely available, affordable
Wix	51394	High-quality filtration
NAPA	1394	Made by Wix
Briggs & Stratton	696854	Suitable for many engines
Kohler	12-050-01-S	Commonly used in similar engines
Stens	120-634	Reliable aftermarket option
Oregon	83-282	Known in the mower industry
Baldwin	B7165	Commercial-grade filter

Always double-check your engine model and owner's manual to confirm compatibility. While most filters listed above will fit the same threads and size, some engines may have slight variations in clearance or pressure requirements.

OEM Oil Filter for Toro 24.5 HP Engines

The original oil filter for most Toro 24.5 HP engines is:

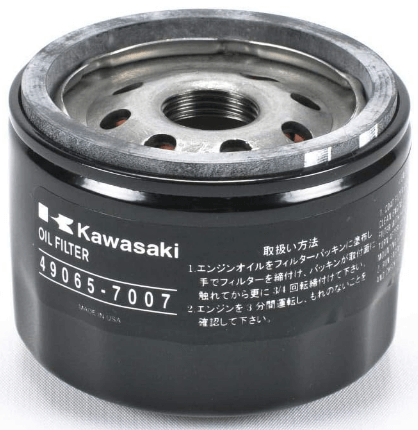

Kawasaki 49065-7007

check price on amazon

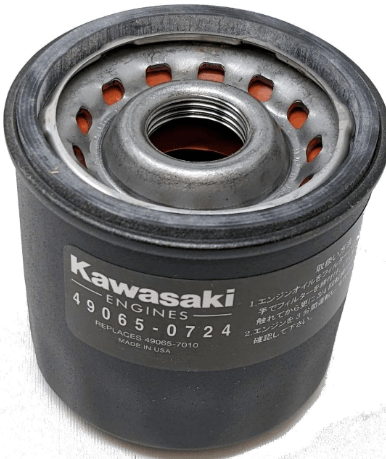

Kawasaki 49065-0724

check price on amazon

These filters are designed to trap contaminants and keep your oil clean, ensuring your engine runs smoothly over long mowing sessions.

Why Use a Cross-Reference Oil Filter?

There are several reasons you might want to cross-reference your Toro oil filter:

Availability: Sometimes OEM filters are out of stock locally or online.
Cost savings: Aftermarket filters are often more affordable.
Brand preference: You may prefer well-known oil filter brands like Fram, Wix, or Briggs & Stratton.
Convenience: Some brands are easier to find in auto parts stores or big-box retailers.

However, choosing a quality replacement is essential. Not all filters are created equal, and a poor-quality filter can lead to oil flow issues or reduced engine protection.

Key Features to Consider in a Replacement Oil Filter

When choosing an aftermarket oil filter for your Toro 24.5 HP engine, pay attention to these important features:

Micron Rating: This indicates how well the filter traps small particles. A rating between 20-30 microns is ideal for most mower engines.
Anti-Drain Back Valve: Prevents oil from draining out of the filter when the engine is off, ensuring quicker oil pressure on startup. While not always necessary for horizontal shaft engines, it’s a nice feature.
Bypass Valve: Protects the engine by allowing oil to bypass the filter if it becomes clogged.
Build Quality: Choose filters made with high-quality materials. Cheap filters may collapse under pressure or leak.
Thread Size & Gasket Diameter: Ensure these match your engine to avoid leaks and poor fit.

How Often Should You Change the Oil Filter?

For optimal performance, you should change your oil and oil filter every:

50 to 100 hours of operation (or)
Once per mowing season, whichever comes first.

If you operate your mower in dusty or hot conditions, consider shortening the interval.

Tips for Changing Your Toro 24.5 HP Engine Oil Filter

Warm up the engine: Let it run for a few minutes. Warm oil drains more easily.
Drain the oil: Locate and remove the oil drain plug.
Remove old filter: Use an oil filter wrench if it’s too tight.
Lubricate the new filter gasket: Use a bit of clean oil for a better seal.
Install the new filter: Hand-tighten only—do not over-tighten.
Refill with oil: Use the recommended type and quantity (often 10W-30 or SAE 30).
Run the engine & check for leaks.

FAQs

How to know if an oil filter is compatible?

To determine if an oil filter is compatible with your engine:

Check your owner’s manual: It lists the exact oil filter part number recommended by the manufacturer.
Use the engine model number: For Toro mowers, many use Kawasaki engines. Look up your engine model (e.g., FX730V or FS730V) and search for compatible filters.
Cross-reference: Use online cross-reference tools (available on brands like Wix, Fram, or NAPA) to find filters that match the OEM filter.
Match specifications: Ensure the replacement filter has the same:
- Thread size
- Gasket diameter
- Overall height
- Bypass valve and anti-drain back valve (if applicable)

Do Toro mowers have oil filters?

Yes, most Toro mowers with larger engines (typically over 20 HP) do have oil filters. These are especially common in:

Zero-turn mowers
Commercial-grade Toro mowers
Models with Kawasaki, Kohler, or Briggs & Stratton V-twin engines

However, some smaller push mowers and compact residential models may not have oil filters. Always check your model’s manual or look around the engine block for a filter.

What kind of oil should I use in my Toro zero turn mower?

For most Toro zero-turn mowers with Kawasaki engines (like 24.5 HP models), Toro recommends:

SAE 10W-30 (a common choice for varying temperatures)
SAE 30 (preferred for warmer climates and summer mowing)
Synthetic 10W-30 or 5W-30 for improved protection and cold starts

Make sure to use high-quality, detergent-based 4-cycle engine oil rated for API service category SJ or higher.

What is the code for oil filters?

“Code” typically refers to the part number assigned to an oil filter. Each brand has its own code or model number. For example:

Kawasaki OEM filter: 49065-7007 or 49065-0724
Fram equivalent: PH4967
Wix equivalent: 51394
Briggs & Stratton: 696854

You can use the OEM code to find compatible alternatives from other brands using a cross-reference chart.

How much oil does a Toro 24.5 HP engine take?

The oil capacity for a Toro mower with a 24.5 HP Kawasaki engine (like the FX730V or FS730V) is usually:

Approximately 2.1 quarts (2.0 liters) with oil filter change

This may vary slightly depending on the engine model, so always check the engine’s manual. After refilling, run the engine for a minute, shut it off, and recheck the oil level using the dipstick.

Can I use 5W-30 oil for Toro lawn mower?

Yes, you can use 5W-30 oil in your Toro lawn mower, especially if:

You operate the mower in cold to moderate temperatures
You’re using synthetic oil (which provides stable performance across temperature ranges)

However:

10W-30 is usually more widely recommended for general use.
SAE 30 is ideal for consistent warm-weather mowing.

Final Thoughts

Using the right oil filter for your Toro 24.5 HP engine is vital for ensuring long-term engine health and performance. Whether you stick with OEM Kawasaki filters or use trusted aftermarket alternatives like Wix, Fram, or NAPA, make sure the replacement meets the engine’s specs.

Routine oil changes, paired with the right filter, help your Toro mower deliver powerful, reliable performance season after season.
