John Deere Engine Oil Capacity(For All JD Models)

When it comes to maintaining your John Deere equipment, engine oil capacity plays a vital role. Whether you’re driving a lawn tractor, a massive agricultural machine, or a Gator UTV, knowing the exact oil capacity ensures smooth performance, longevity, and prevents costly engine repairs.

Let’s dive into the most comprehensive oil capacity table available for John Deere models.

John Deere Engine Oil Capacity

Lawn Tractors

Model	Engine Type	Oil Capacity (with filter)
D100	17.5 HP	1.5 qt (1.4 L)
D110	19 HP	1.5 qt (1.4 L)
D125	20 HP	1.8 qt (1.7 L)
D130	22 HP	1.8 qt (1.7 L)
D140	22 HP	1.8 qt (1.7 L)
D160	25 HP	2.0 qt (1.9 L)
E100	17.5 HP	1.5 qt (1.4 L)
E110	19 HP	1.5 qt (1.4 L)
E120	20 HP	1.8 qt (1.7 L)
E130	22 HP	1.8 qt (1.7 L)
E140	22 HP	1.8 qt (1.7 L)
E150	22 HP	1.8 qt (1.7 L)
E160	24 HP	2.0 qt (1.9 L)
E170	25 HP	2.0 qt (1.9 L)
E180	25 HP	2.0 qt (1.9 L)
S240	18.5 HP	2.0 qt (1.9 L)
X300	17 HP	1.5 qt (1.4 L)
X320	22 HP	1.8 qt (1.7 L)
X330	20 HP	1.8 qt (1.7 L)
X350	18.5 HP	2.0 qt (1.9 L)
X354	18.5 HP	2.0 qt (1.9 L)
X370	18.5 HP	2.0 qt (1.9 L)
X380	22 HP	2.0 qt (1.9 L)
X390	22 HP	2.0 qt (1.9 L)
X394	22 HP	2.0 qt (1.9 L)
X500	24 HP	2.0 qt (1.9 L)
X530	24 HP	2.0 qt (1.9 L)
X534	24 HP	2.0 qt (1.9 L)
X540	24 HP	2.0 qt (1.9 L)
X570	24 HP	2.0 qt (1.9 L)
X580	24 HP	2.0 qt (1.9 L)
X584	24 HP	2.0 qt (1.9 L)
X590	25.5 HP	2.0 qt (1.9 L)
Z225	18.5 HP	1.8 qt (1.7 L)
Z425	22 HP	1.8 qt (1.7 L)
Z445	25 HP	2.0 qt (1.9 L)
Z465	25 HP	2.0 qt (1.9 L)

Related Best Motor Oil for Small Engines(Top 5 Best 2025)

Compact Utility Tractors

Model	Engine Type	Oil Capacity (with filter)
770	23.8 HP	6.0 qt (5.7 L)
790	27–30 HP	6.0 qt (5.7 L)
990	40.4 HP	6.0 qt (5.7 L)
1023E	22.4 HP	2.9 qt (2.7 L)
1025R	23.9 HP	2.9 qt (2.7 L)
1026R	25.2 HP	2.9 qt (2.7 L)
2025R	24.2 HP	3.6 qt (3.4 L)
2026R	25.2 HP	3.6 qt (3.4 L)
2032R	31.2 HP	5.0 qt (4.7 L)
2038R	37.3 HP	5.0 qt (4.7 L)
3025E	24.7 HP	4.8 qt (4.5 L)
3032E	31.2 HP	4.8 qt (4.5 L)
3033R	32.5 HP	6.0 qt (5.7 L)
3038E	37.3 HP	4.8 qt (4.5 L)
3039R	38.8 HP	6.0 qt (5.7 L)
3046R	45.3 HP	6.0 qt (5.7 L)
4044M	43.1 HP	6.0 qt (5.7 L)
4044R	43.1 HP	6.0 qt (5.7 L)
4052M	51.5 HP	6.0 qt (5.7 L)
4052R	51.5 HP	6.0 qt (5.7 L)
4066M	65.9 HP	6.0 qt (5.7 L)
4066R	65.9 HP	6.0 qt (5.7 L)
4105	40.1 HP	6.0 qt (5.7 L)
4115	24 HP	6.0 qt (5.7 L)
4200	26–38 HP	6.0 qt (5.7 L)
4210	30–39 HP	6.0 qt (5.7 L)
4300	32.2 HP	6.0 qt (5.7 L)
4310	30–39 HP	6.0 qt (5.7 L)
4400	35.1 HP	6.0 qt (5.7 L)
4410	30–39 HP	6.0 qt (5.7 L)
4500	39 HP	6.0 qt (5.7 L)
4510	39 HP	6.0 qt (5.7 L)
4600	43 HP	6.0 qt (5.7 L)
4610	44 HP	6.0 qt (5.7 L)
4700	48 HP	6.0 qt (5.7 L)
4710	50 HP	6.0 qt (5.7 L)

Related Cub Cadet Kohler Engine Oil Capacity Chart(Models A to Z)

Agricultural Tractors

Model	Engine Type	Oil Capacity (with filter)
A	24–40 HP	8.0 qt (7.6 L)
B	14–28 HP	8.0 qt (7.6 L)
D	28–38 HP	7.0 qt (6.6 L)
E	8–14 HP	1.0 qt (0.9 L)
4050	105 HP	13.0 qt (12.3 L)
4230	100 HP	17.0 qt (16.1 L)
4240	110 HP	13.0 qt (12.3 L)
4440	130 HP	16–18 qt (15.1–17 L)
4630	150 HP	17.0 qt (16.1 L)
4640	155 HP	18.0 qt (17 L)
4840	180 HP	18.0 qt (17 L)
5055E	55 HP	8.5 qt (8.0 L)
5065E	65 HP	8.5 qt (8.0 L)
5075E	75 HP	8.5 qt (8.0 L)
5085E	85 HP	8.5 qt (8.0 L)
5090E	90 HP	8.5 qt (8.0 L)
5100E	100 HP	8.5 qt (8.0 L)
6105R	105 HP	16.9 qt (16 L)
6115R	115 HP	16.9 qt (16 L)
6125R	125 HP	16.9 qt (16 L)
6130R	130 HP	16.9 qt (16 L)
6140R	140 HP	16.9 qt (16 L)
6150R	150 HP	16.9 qt (16 L)
6155M	155 HP	18.5 qt (17.5 L)
6170R	170 HP	22.2 qt (21 L)
6190R	190 HP	22.2 qt (21 L)
6210R	210 HP	22.2 qt (21 L)
7200	95 HP	12.7 qt (12 L)
7210	105 HP	20.1 qt (19 L)
7410	115 HP	21.1 qt (20 L)
7600	110 HP	20.1 qt (19 L)
7700	120 HP	20.1 qt (19 L)
7800	135 HP	20.1 qt (19 L)
7220	95 HP	21.1 qt (20 L)
7320	105 HP	21.1 qt (20 L)
7420	115 HP	21.1 qt (20 L)
7520	125 HP	21.1 qt (20 L)
8R Series	230–410 HP	28–34 qt (26.5–32 L)

Related Kohler Engine Oil Chart(A to Z Guide)

Gators and UTVs

Model	Engine Type	Oil Capacity (with filter)
HPX615E	20 HP	2.0 qt (1.9 L)
HPX815E	18.6 HP	2.0 qt (1.9 L)
TS 4×2	13.5 HP	1.5 qt (1.4 L)
TE 4×2	Electric	N/A (Electric)
GS Electric	Electric	N/A (Electric)
XUV560E	16 HP	1.5 qt (1.4 L)
XUV590M	32 HP	1.8 qt (1.7 L)
XUV825i	50 HP	2.0 qt (1.9 L)
XUV835M	54 HP	2.5 qt (2.4 L)
XUV865M	23 HP (Diesel)	2.5 qt (2.4 L)

Best John Deere Engine Oil

1. John Deere Turf-Gard SAE 10W-30 Engine Oil

Formulated specifically for John Deere lawn and garden equipment, this oil provides dependable protection in all seasons.

• Provides maximum protection for air-cooled engines
• Reduces engine wear and extends service life
• Excellent performance in both hot and cold conditions
• Meets/exceeds API SJ/CF standards

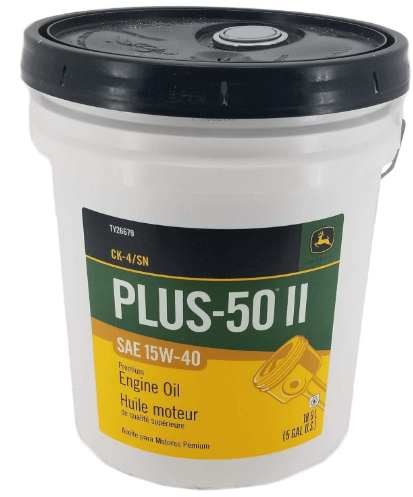

2. John Deere Plus-50 II SAE 15W-40 Engine Oil

Premium heavy-duty oil designed for extended service intervals in diesel engines used in tractors and construction equipment.

• Extended drain interval capabilities
• Superior protection against wear, sludge, and deposits
• Maintains viscosity under high-load conditions
• API CK-4 rated for modern emissions-compliant engines

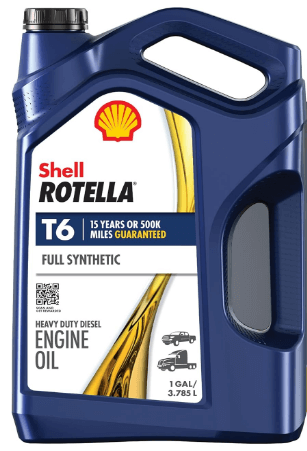

3. Rotella T6 Full Synthetic 5W-40 Diesel Engine Oil

A synthetic diesel oil trusted by many for its performance in extreme temperatures and demanding workloads.

• Enhanced fuel economy and cold-weather performance
• Triple Protection Plus technology for wear and deposit control
• Suitable for on- and off-highway applications
• Meets API CK-4 standards

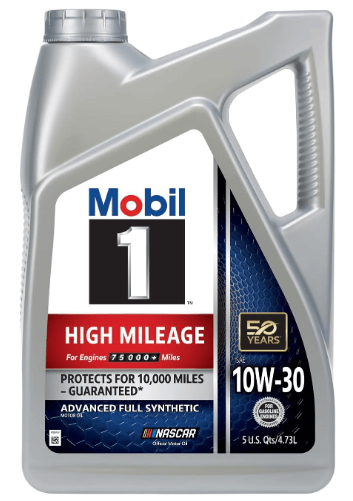

4. Mobil 1 10W-30 High Mileage Full Synthetic Motor Oil

Great for older John Deere gasoline engines, offering extra protection for engines with more than 75,000 miles.

• Helps reduce leaks and oil consumption
• Excellent engine cleanliness and wear protection
• Good thermal and oxidation stability
• API SP, SN Plus approved

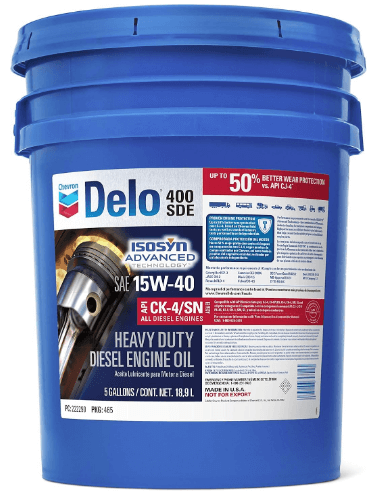

5. Chevron Delo 400 SDE SAE 15W-40 Diesel Engine Oil

Reliable and cost-effective oil for diesel-powered John Deere equipment used in farming and construction.

• Outstanding soot control and engine cleanliness
• Enhanced oxidation stability and wear protection
• Works well under high-temperature operating conditions
• Meets API CK-4 and OEM specifications

Factors That Affect Oil Capacity

Not every John Deere model is built the same. Several factors affect the engine oil capacity:

• Engine size (HP rating)
• Oil cooler presence
• Air-cooled vs. Liquid-cooled engines
• Model year or series

Related SCAG Kawasaki Engine Oil Capacity(Oil Capacities by Model)

How to Check Engine Oil in John Deere Equipment

1. Park on level ground
2. Let engine cool for 5–10 minutes
3. Remove dipstick, wipe clean
4. Insert fully, then remove and check level
5. Top off with correct oil type if needed

Recommended Engine Oils by John Deere

• Turf-Gard 10W-30 – Best for lawn tractors

• Plus-50 II 15W-40 – Designed for heavy-duty and agricultural tractors
• Full-Synthetic 5W-30 – Ideal for cold climates and UTVs

Signs You’re Low on Engine Oil

• Engine knocking or ticking
• Oil warning light on the dashboard
• Excess exhaust smoke
• Overheating issues
• Engine stalls or surges

DIY Tips for John Deere Oil Change

• Warm up the engine for 2–3 minutes
• Use an oil drain pan and proper funnel
• Always install a new oil filter
• Don’t over-tighten the drain plug
• Recheck oil level after running for 2 minutes

Related Toro 24.5 HP Engine Oil Capacity Chart(With Filter & Without)

Common Mistakes When Changing JD Oil

• Using the wrong oil type or viscosity
• Overfilling or underfilling
• Skipping filter change
• Not cleaning around the fill cap
• Forgetting to check the oil after a refill

FAQs

How much oil does a John Deere 100 series tractor take?

John Deere 100 Series lawn tractors (such as the D110, D130, and E100 models) generally require 1.5 to 2.0 quarts (1.4 to 1.9 liters) of engine oil with a new filter. For example:

• D110: 1.5 qt (1.4 L)
• E130: 1.9 qt (1.8 L)
• S120: 2.0 qt (1.9 L)

What is the engine capacity of a John Deere tractor?

“Engine capacity” can refer to displacement or oil capacity. Here’s clarification:

• Displacement (engine size) ranges from 500 cc in lawn tractors up to 9.0L+ in large ag tractors like the 8R series.
• Oil capacity ranges from:
  • 1.5 qt in small models
  • Up to 34 qt (32 liters) in large agricultural tractors

How much oil does a 250G Deere engine hold?

The John Deere 250G LC Excavator, which uses a diesel engine, typically holds around:

• 6.1 gallons (23 liters) of engine oil with a filter

Related TB110 Engine Oil Capacity(Complete Guide)

What engine oil does John Deere use?

John Deere recommends its Plus-50™ II 15W-40 engine oil for most heavy-duty diesel engines and Turf-Gard™ 10W-30 for residential equipment. These oils meet or exceed API standards and are designed for:

• Improved wear protection
• Longer oil change intervals
• Excellent cold starting and high-heat stability

How much engine oil do I need?

That depends on your machine. Here’s a general guide:

Equipment Type	Oil Needed
Lawn Tractor	1.5–2.0 qt (1.4–1.9 L)
Compact Utility Tractor	2.5–5.5 qt (2.4–5.2 L)
Agricultural Tractor	8–34 qt (7.6–32 L)
UTV/Gator	1.5–2.5 qt (1.4–2.4 L)
Excavator	23–40 qt (21–38 L)

How many litres of oil does a tractor take?

Typical oil capacities for tractors range from:

• Small lawn or compact tractors: 1.5 to 5 liters
• Mid-size tractors: 7 to 15 liters
• Large ag tractors: 20 to 32+ liters

A John Deere 5055E, for example, takes 7.6 L, while an 8R Series can take up to 32 L.

How much oil does a John Deere 135G engine hold?

The John Deere 135G excavator uses a diesel engine that holds approximately:

• 5.5 gallons (20.8 liters) of engine oil with a filter change.

How much oil does a John Deere 160 take?

The John Deere 160 Excavator engine typically takes:

• 5.8 to 6.3 gallons (22 to 24 liters) of oil with filter

As always, confirm based on your machine’s year, model, and engine variant.
