If you own a Cub Cadet mower powered by a Kawasaki engine, knowing the correct oil capacity is essential for smooth operation and engine longevity. The exact amount depends on the specific Kawasaki engine model, not just the mower model name.
This guide provides an easy-to-read table of oil capacities for all common Cub Cadet Kawasaki engine configurations.
Cub Cadet Kawasaki Engine Oil Capacity
Residential (FR Series)
| Model | Engine Model | Oil Capacity (Quarts) | Oil Capacity (Liters) |
|---|---|---|---|
| Ultima ZT1 42 | Kawasaki FR651V | 2.1 | 2.0 |
| Ultima ZT1 46 | Kawasaki FR651V | 2.1 | 2.0 |
| Ultima ZT1 50 | Kawasaki FR691V | 2.1 | 2.0 |
| Ultima ZT1 54 | Kawasaki FR691V | 2.1 | 2.0 |
| Ultima ZT2 54 | Kawasaki FR730V | 2.1 | 2.0 |
| Ultima ZT2 60 | Kawasaki FR730V | 2.1 | 2.0 |
| Ultima ZTX4-48 | Kawasaki FR691V | 2.1 | 2.0 |
| XT2 LX46 | Kawasaki FR651V | 2.1 | 2.0 |
| XT2 LX50 | Kawasaki FR691V | 2.1 | 2.0 |
| XT3 GSX | Kawasaki FR730V | 2.1 | 2.0 |
| RZT SX42 | Kawasaki FR651V | 2.1 | 2.0 |
| RZT SX54 | Kawasaki FR691V | 2.1 | 2.0 |
| RZT LX46 | Kawasaki FR691V | 2.1 | 2.0 |
| LTX 1046 KW | Kawasaki FR651V | 2.1 | 2.0 |
| SLX50 | Kawasaki FR691V | 2.1 | 2.0 |
| ZT3 60 | Kawasaki FR730V | 2.1 | 2.0 |
| 1525 | Kawasaki 15 hp | 1.9 | 1.8 |
| ZT1 46 KH | Kawasaki FR651V | 2.1 | 2.0 |
| RZT L50 KW | Kawasaki FR691V | 2.1 | 2.0 |
| LTX 1045 | Kawasaki FR600V | 1.8 | 1.7 |
| Ultima ZT1 48 | Kawasaki FR691V | 2.1 | 2.0 |
Related Cub Cadet Kohler Engine Oil Capacity Chart(For ALL Models)
Commercial Light/Medium Duty (FS Series)
| Model | Engine Model | Oil Capacity (Quarts) | Oil Capacity (Liters) |
|---|---|---|---|
| PRO Z 148 S EFI | Kawasaki FS600V | 1.8 | 1.7 |
| PRO Z 148 L | Kawasaki FS651V | 2.1 | 2.0 |
| PRO Z 154 L | Kawasaki FS651V | 2.1 | 2.0 |
| PRO Z 154 S | Kawasaki FS691V | 2.1 | 2.0 |
| PRO Z 160 S | Kawasaki FS691V | 2.1 | 2.0 |
| RZT S50 KH | Kawasaki FS730V | 2.1 | 2.0 |
| PRO Z 160 L | Kawasaki FS691V | 2.1 | 2.0 |
| PRO Z 148 S | Kawasaki FS600V | 1.8 | 1.7 |
| PRO Z 160 M | Kawasaki FS691V | 2.1 | 2.0 |
| PRO Z 154 M | Kawasaki FS651V | 2.1 | 2.0 |
Related 4 Cycle Engine Oil(Top 5 Best Oil 2025)
Commercial Heavy Duty (FX Series)
| Model | Engine Model | Oil Capacity (Quarts) | Oil Capacity (Liters) |
|---|---|---|---|
| Z-Force S 48 | Kawasaki FR691V | 2.1 | 2.0 |
| Z-Force S 60 | Kawasaki FR730V | 2.1 | 2.0 |
| Z-Force L 48 | Kawasaki FR691V | 2.1 | 2.0 |
| Z-Force LZ 60 | Kawasaki FX730V | 2.2 | 2.1 |
| PRO Z 500 | Kawasaki FX691V | 2.2 | 2.1 |
| PRO Z 554 | Kawasaki FX691V | 2.2 | 2.1 |
| PRO Z 560 S | Kawasaki FX730V | 2.2 | 2.1 |
| PRO Z 560L KW | Kawasaki FX850V | 2.4 | 2.3 |
| PRO Z 572 L KW | Kawasaki FX850V EFI | 2.5 | 2.4 |
| Ultima ZTX5-60 | Kawasaki FX801V | 2.4 | 2.3 |
| Ultima ZTX6-72 | Kawasaki FX921V | 2.5 | 2.4 |
| PRO Z 760 L | Kawasaki FX1000V | 2.5 | 2.4 |
| PRO Z 972 SDL | Kawasaki FX921V | 2.5 | 2.4 |
| Tank M60 | Kawasaki 23 hp | 1.9 | 1.8 |
| PRO Z 754 S | Kawasaki FX850V | 2.4 | 2.3 |
| PRO Z 760 S | Kawasaki FX1000V | 2.5 | 2.4 |
| ZTX4-54 | Kawasaki FX730V | 2.2 | 2.1 |
| PRO Z 972 S KW | Kawasaki FX921V | 2.5 | 2.4 |
| PRO Z 754 L | Kawasaki FX850V | 2.4 | 2.3 |
| Tank LZ 60 | Kawasaki FX850V | 2.4 | 2.3 |
Related SCAG Kawasaki Engine Oil Capacity(For ALL Models)
Best Engine Oil For Cub Cadet Kawasaki

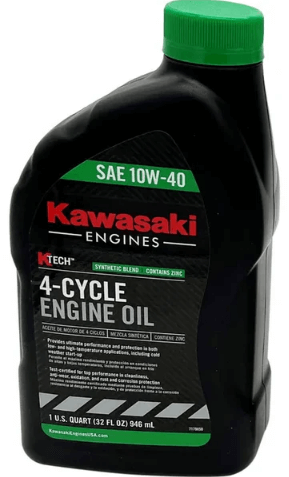

1. Kawasaki Genuine OEM SAE 10W-40 4-Cycle Engine Oil
A premium-grade oil formulated specifically for Kawasaki air-cooled engines, ensuring maximum protection and performance.
- Designed to reduce wear and extend engine life
- High detergent content to keep the engine clean
- Optimized for FR, FS, and FX Kawasaki series
- Excellent temperature stability for year-round use

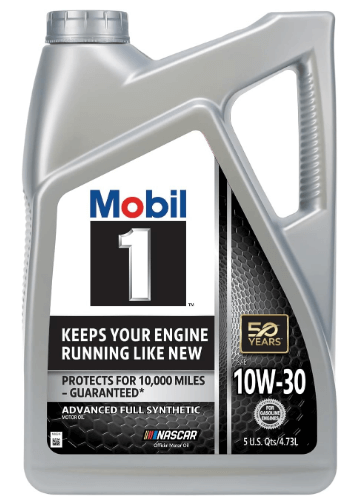

2. Mobil 1 10W-30 Full Synthetic Motor Oil
A high-performance synthetic oil providing outstanding lubrication for both residential and commercial mower engines.
- Advanced synthetic formula for superior wear protection
- Helps maintain viscosity under high operating temperatures
- Excellent cold start performance
- Meets API SN/SM and other industry standards

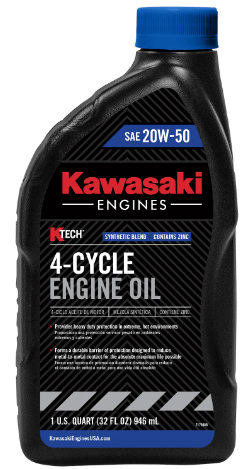

3. Kawasaki Performance SAE 20W-50 Engine Oil
Ideal for heavy-duty or high-temperature mowing conditions, especially for commercial-grade FX series engines.
- Extra film strength for hot weather operations
- Reduces oxidation and sludge buildup
- Protects engine parts under high load
- OEM-approved for Kawasaki commercial engines
Related 22 HP Kawasaki Engine Oil Capacity(For All Engine Series)
How to Use the Oil Capacity Chart
- Identify Your Engine Model – Check the engine code on the side of your Kawasaki engine (e.g., FR691V). This is more accurate than relying on mower deck size or year alone.
- Match the Engine Code to the Chart – Find the correct row above to know how much oil your engine holds.
- Refill Carefully – Add about 90% of the listed capacity first, run the engine briefly, then check the dipstick and top off to the “FULL” mark.
- Change the Filter with Every Oil Change – The listed capacities assume a fresh filter unless noted.
Related Cub Cadet 357cc Engine Oil Capacity Chart(And Oil Type)
Recommended Oil Types for Kawasaki Engines
- Most Climates: SAE 10W-40 or SAE 10W-30 high-quality detergent oil.
- Hot and Heavy-Duty Use: SAE 20W-50 can help in prolonged high-temperature operation.
- Always use oil that meets API SJ or higher service classifications.
FAQs
How many quarts of oil does a Cub Cadet Kawasaki engine take?
Most Cub Cadet mowers with Kawasaki FR, FS, or FX series engines take about 2.1 quarts with an oil filter installed. Some smaller FS600V engines hold 1.8 quarts, while larger FX850V engines can take 2.4–2.5 quarts.
How much oil does a Kawasaki engine take?
Oil capacity depends on the engine model. Residential FR series typically take 2.1 quarts, FS commercial models range from 1.8 to 2.1 quarts, and FX heavy-duty engines hold 2.2–2.5 quarts with filter.
What oil does my Cub Cadet take?
Cub Cadet recommends high-quality detergent oil meeting API SJ or later. For most climates, SAE 10W-30 or 10W-40 is ideal, while SAE 20W-50 works better for high-heat or heavy-duty operation.
How much oil does a Cub Cadet 30 inch riding mower take?
The Cub Cadet 30-inch riding mower with a Kawasaki engine (if equipped) generally holds around 2.1 quarts with the filter, though the exact capacity should be confirmed from the engine model tag.
What oil is recommended for Kawasaki engines?
Kawasaki recommends SAE 10W-30, SAE 10W-40, or SAE 20W-50 detergent oils, depending on ambient temperature. Always use oil meeting API SJ or newer specifications.
How many quarts are in a Cub Cadet?
Most Cub Cadet Kawasaki-powered models take 2.1 quarts of oil, but some commercial models can hold up to 2.5 quarts. The exact amount depends on the engine, not the mower size.
